Rapid Glass Handrail System in High or Low Profile / Wet or Dry Glazed Installations

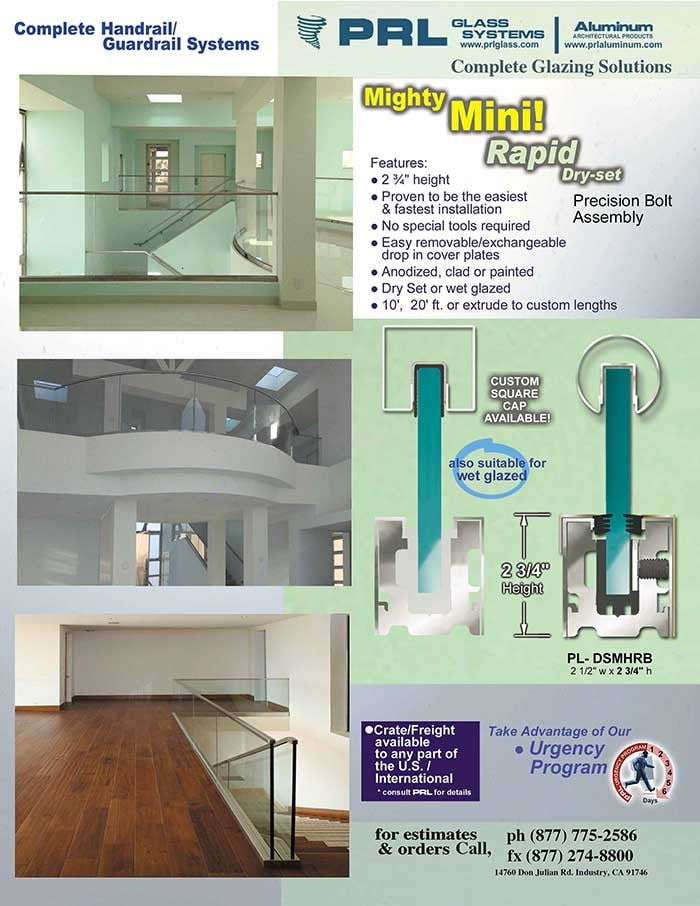

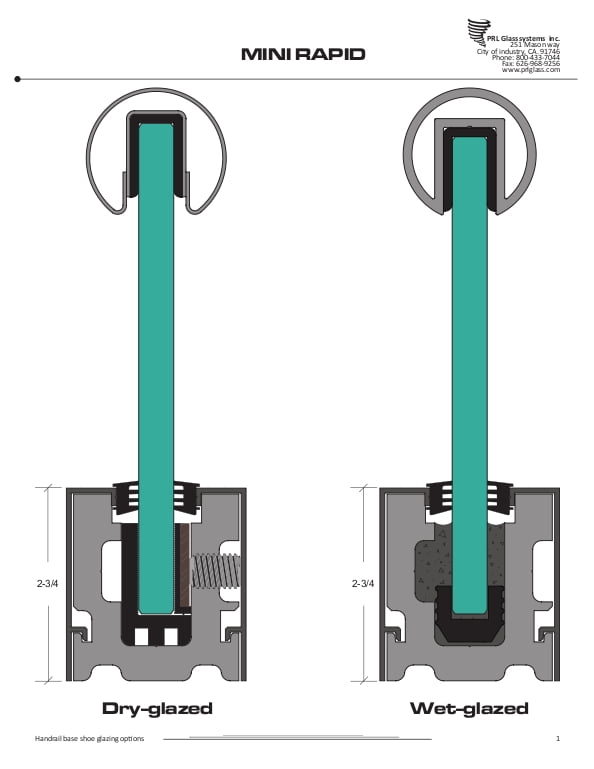

PRL’s Mini Rapid-Set Handrail Base is only 2-3/4″ tall! And while it is one of the smallest base shoes in the industry it is fully tested to handle the loads required by building codes.

Used as a dry-set system it requires no special tools to install.

Used as a wet set system it reduces the amount of cement required.

It’s unique light weight design and drop-on covers makes your installation fast and easy!

Extruded aluminum interchangeable covers provide cost savings and versatility in changing finishes or replacing damaged covers.

Let us supply your next railing project, complete, from A to Z.

Send us your dimensions and let us take care of the rest!

Rapid Glass Handrail System
Rapid-Set Handrail Base for 3/4 Inch Glass

Rapid Glass Handrail System

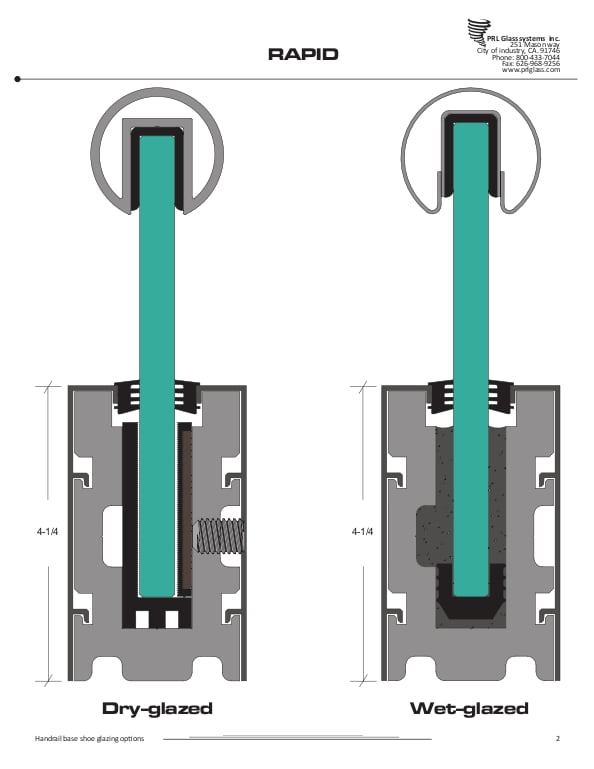

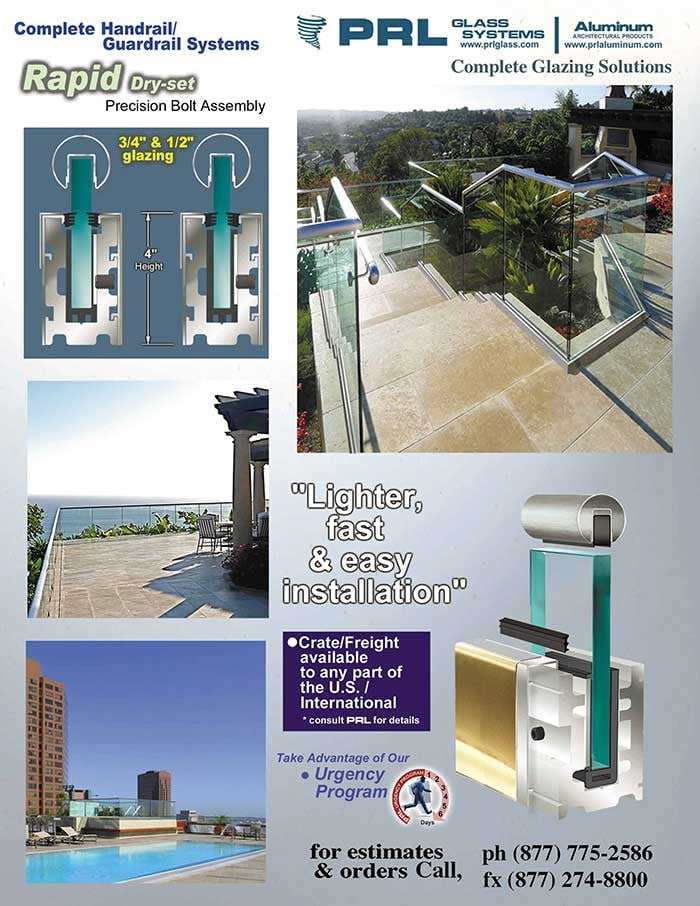

PRL’s Rapid-Set Handrail Base for 3/4″ tempered/laminated glass has become a great success thanks to you, our loyal customers! Our base shoe has many advantageous features that others don’t. To begin with it is 30% lighter than the traditional wet set base. It also has the unique feature of “drop-on covers”. Since they just drop onto slots in the base shoe, they are simple and fast to install.

This feature allows you to change damaged pieces easily and inexpensively. It’s also a benefit if your customer wants to change the existing base shoe finish or just make it look new again!

Our extruded aluminum covers are available anodized, painted or clad in stainless steel or brass. PRL extrudes, forms, and fabricates our own base shoe, top cap and post systems in-house! As a leading fabricator of tempered and laminated glass we are able to combine our glass and metal fabrication skills to supply your entire project.

In-House Rapid-Set Handrail Manufacture

Architectural Glass Handrail Systems Rapid PLMRDSHRB options

  • The Rapid is more economical (less weight)
  • Lighter (easier on for the installer to move around)
  • Mounting pressure plate for dry set systems(no special tools required)
  • Interchange cover plates (for both systems)
  • High quality anodized covers (no break line)
  • We can not be beat when it comes to anodized price and quality!
  • Easy drop in covers without tape or silicone
  • Easily replaceable covers in the event of damage or color change

For Complete Handrail Specifications, Estimates and Orders
Please Contact Our Design Department
Toll Free (877) 775-2586
